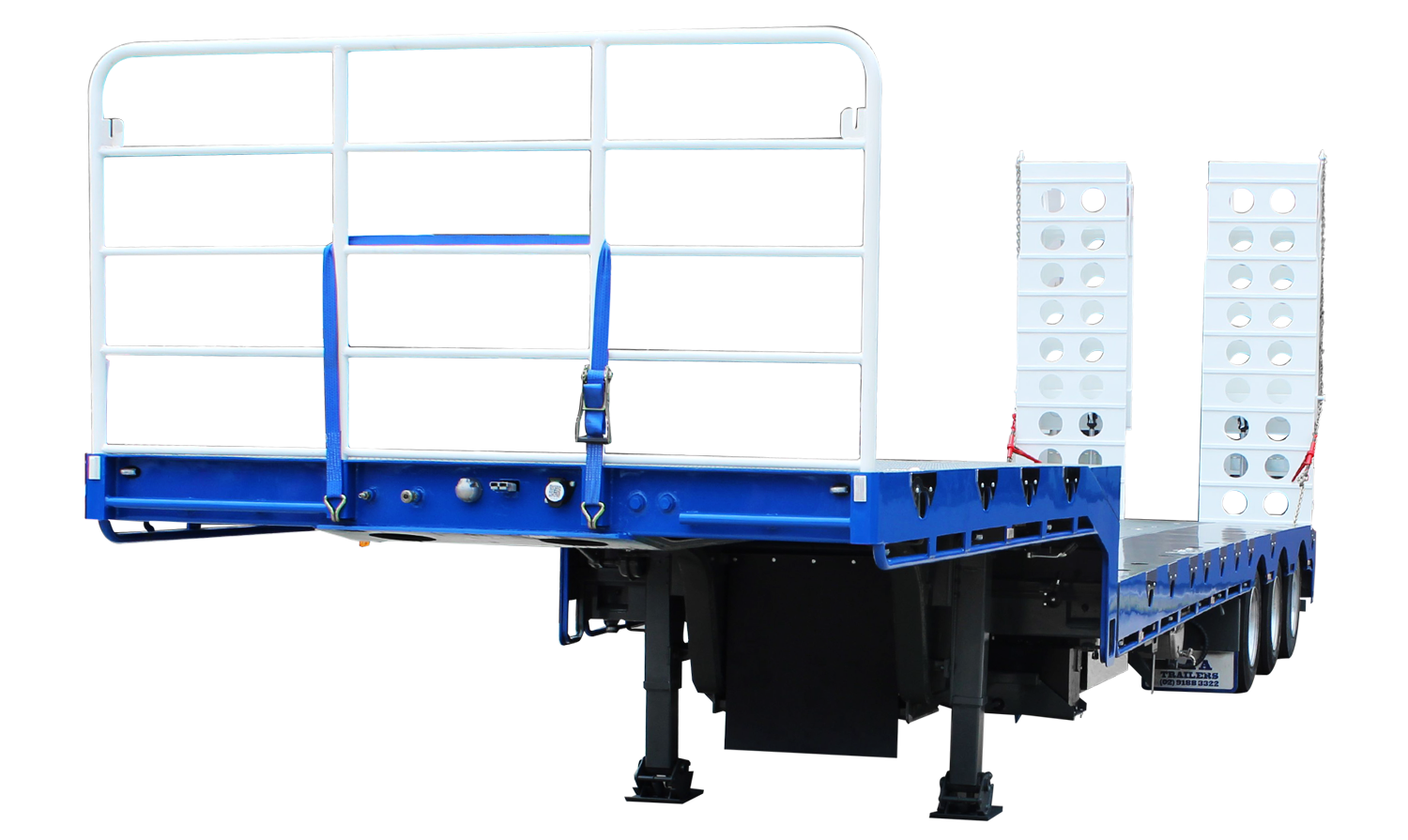

Drop Deck Trailers

Capacity

ATM: 47T

GTM: 27T

Approx tare weight: 10.7T

Length

Full length: 13.72m (including ramps)

Lower deck: 9.4m

Upper deck: 3.95m

Mainframe

High-tensile steel grade

Floor

5mm steel chequer plate, forklift-rated

Kingpin

Dual-position 50mm bolt-in (90mm optional)

Coaming

5-inch with tie rail or C Channel with Tie Rail

Brake kit

EBS multi-volt 12/24V

Container pins

3-way

Gates

Front gate: 1,200mm steel

Side gates: Side gate pockets (side gates optional)

Suspension

K-Hitch tri-axle airbag (FUWA FW520 8-leaf spring optional)

Axles

K-Hitch 22.5” or 19.5” drum brake axles

Landing legs

K-Hitch 2-speed

Wheels

10/285 or 8/275 PCD dual steel rims (aluminium optional)

Tyres

255/70R22.5 or 265/70R19.5

Spare wheel carrier

Dual (spare wheels optional)

Lighting

Full LED

Water tank

30L stainless steel

Toolboxes

2 steel with stainless steel “T” handles

Mudguards

Quarter guards front and rear with AAA Trailers mud flaps

Road train bracket

Coupling, air, and electrical optional

Ramps

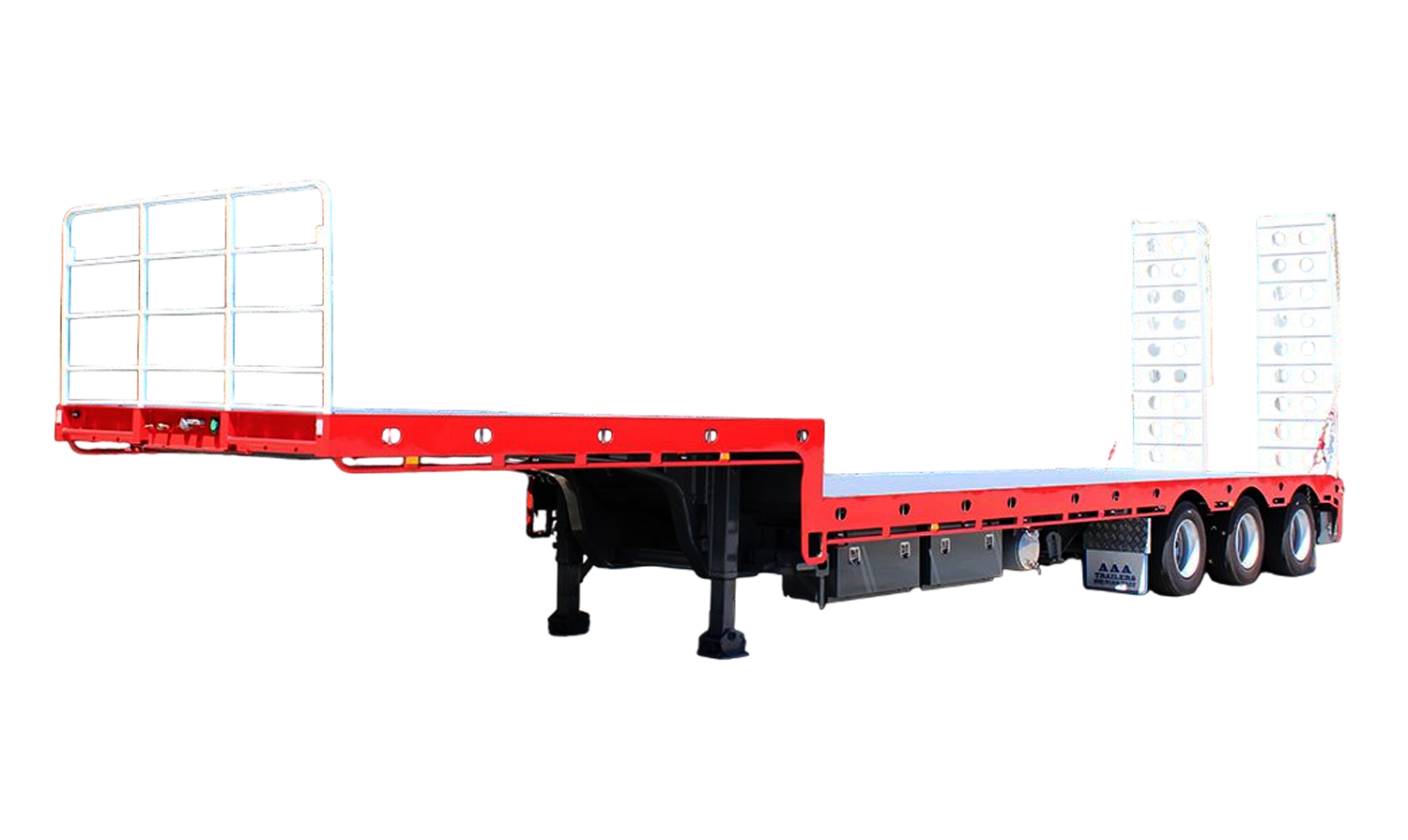

• Bi-fold with 12V electric power pack and N150 battery with built-in Anderson plug
• 3 pc fold-down upper deck ramps
• Slide-out upper deck ramps Optional
• Forward Fold Ramps Optional

Optional Extras

• Road Train Kit
• Ring Feeder
• Side Gates
• Custom Paint - Coaming Rails
• Forward Fold Ramp Option
• No Ramps
• Hard Wired Flashing Beacon
• Road Train / Long Vehicles Signs
• Hub Odometer
• Spare Wheel: Steel or Alloy
• 3 Piece Flip-Over Upper Deck Ramps

Capacity

ATM: 47T

GTM: 27T

Approx tare weight: 10.3T

Length

Full length: 13.72m

Mainframe

High-tensile steel grade

Floor

5mm steel chequer plate, forklift-rated

Kingpin

Dual-position 50mm bolt-in (90mm optional)

K-Hitch tri-axle airbag

K-Hitch 2-speed

10/225 PCD dual steel

30LT Stainless steel

2 steel with stainless steel “T” handles

Quarter guards front and rear with AAA Trailers mud flaps

Coupling, air, and electrical optional

Optional Extras

• Road Train Kit
• Ring Feeder
• Custom Paint - Coaming Rails
• Oversize Signs
• Hub Odometer
• Spare Wheel: Steel or Alloy

ATM: 47T

GTM: 27T

Approx tare weight: 12.5T

Length

Full length: 13.72m (including ramps)

Lower deck: 9.4m

Upper deck: 3.95m

Deck Widener 2500mm - 3500mm

Mainframe

High-tensile steel grade

Floor

5mm steel chequer plate, forklift-rated

Kingpin

Dual-position 50mm bolt-in (90mm optional)

Coaming

5-inch with tie rail

EBS multi-volt 12/24V

Gates

Front gate: 1,200mm steel

Axles

K-Hitch 19.5” or 17.5” drum brake axles

K-Hitch tri-axle airbag (FUWA FW520 8-leaf spring optional)

10/275 or 8/275 PCD dual steel rims (aluminium optional)

265/70R19.5 or 235/75R17.5

Dual (spare wheels optional)

Full LED

Water tank

30L stainless steel

Toolboxes

Mudguards

Quarter guards front and rear with AAA Trailers mud flaps

• Bi-fold ramps with diesel powerpack (hydraulics to truck optional)
• 3 pc fold-down upper deck ramps
• Slide-out upper deck neck ramps (optional)

Optional Extras

• Road Train Kit
• Ring Feeder
• Custom Paint - Coaming Rails
• Forward Fold Ramp Option
• No Ramps
• Hard Wired Flashing Beacon
• Oversize Signs
• Hub Odometer
• Spare Wheel:Steel or Alloy
• 3 Piece Flip-Over Upper Deck Ramps

Capacity

ATM: 47T

GTM: 27T

Approx tare weight: 11.7T - 12.5T

Length

Full length (closed): 13.72M

Lower deck (closed): 9.4m

Upper deck: 3.95m

Extended length: 19.5m

Mainframe

High-tensile steel grade

Floor

5mm steel chequer plate, forklift-rated

Kingpin

Dual-position 50mm bolt-in (90mm optional)

Coaming

5-inch with tie rail

Brake kit

EBS multi-volt 12/24V

Container pins

3-way

Gates

Front gate: 1,200mm steel

Side gates: Side gate pockets (side gates and gate carrier optional)

Suspension

K-Hitch tri-axle airbag (FUWA FW520 8-leaf spring optional)

Axles

K-Hitch 22.5”, 19.5” or 17.5” drum brake axles

Landing legs

K-Hitch 2-speed

Wheels

10/285, 8/275 or 10/275 PCD dual steel rims (aluminium optional)

Tyres

255/70R22.5, 260/70R19.5 or 235/75R17.5

Spare wheel carrier

Dual (spare wheels optional)

Lighting

Full LED

Water tank

30L stainless steel

Toolboxes

2 steel with stainless steel “T” handles

Mudguards

Quarter guards front and rear with AAA Trailers mud flaps

Road train bracket

Coupling, air, and electrical optional

Ramps

• Bi-fold with 12V electric power pack and N150 battery with built-in Anderson plug
• Slide-out upper deck neck ramps (flip-over neck ramps optional)

Optional Extras

• Road Train Kit
• Ring Feeder
• Side Gates
• Custom Paint - Coaming Rails
• Forward Fold Ramp Option
• No Ramps
• Hard Wired Flashing Beacon
• Oversize Signs
• Hub Odometer
• Spare Wheel: Steel or Alloy
• 3 Piece Flip-Over Upper Deck Ramps

Capacity

ATM: 60T

GTM: 36T

Approx tare weight: 14T

Length

Full length 13.72m (including ramps)

Lower deck: 9.4m

Upper deck: 4m

Deck Widener 2500mm - 3500mm

Mainframe

High-tensile steel grade

Floor

5mm steel chequer plate, forklift-rated

Kingpin

Dual-position 50mm bolt-in (90mm optional)

Coaming

5-inch with tie rail

Brake kit

EBS multi-volt 12/24V

Container pins

3-way

Gates

Front gate: 1,200mm steel

Axles

SAF 17.5” drum brake axles

Suspension

SAF quad axle airbag

Landing legs

K-Hitch 2-speed

Wheels

10/225 PCD dual steel rims (aluminium optional)

Tyres

235/75R17.5

Spare wheel carrier

Spare wheel holder (spare wheel optional)

Lighting

Full LED

Water tank

30L stainless steel

Toolboxes

2 steel with stainless steel “T” handles

Mudguards

Quarter guards front and rear with AAA Trailers mud flaps

Road train bracket

Coupling, air, and electrical optional

Ramps

• Bi-fold 60T rated ramps, diesel powerpack, to operate widener and ramps (hydraulics to truck optional)
• 3 pc fold-down upper deck ramps
• Slide-out upper deck neck ramps (optional)

Optional Extras

• Road Train Kit
• Ring Feeder
• Custom Paint - Coaming Rails
• Forward Fold Ramp Option
• No Ramps
• Hard Wired Flashing Beacon
• Oversize Signs
• Hub Odometer
• Spare Wheel or Steel or Alloy
• 3 Piece Flip-Over Upper Deck Ramps

Capacity

ATM: 47T

GTM: 23.5T

Approx tare weight: 8.9T

Length

11.7m

Deck

7.6m

Mainframe

High-tensile steel grade

Floor

5mm steel chequer plate, forklift-rated

Coaming

C-channel with tie rail

Brake kit

EBS multi-volt 12/24V

Gates

Side gate pockets with hanging aluminium side gates

Axles

K-Hitch 22.5” drum brake axles

Suspension

K-Hitch tri-axle airbag

Landing legs

K-Hitch 2-speed

Turntable

K-Hitch 50mm bolt in (90mm optional)

Kingpin

Dual-position 50mm bolt in (90mm optional)

Wheels

10/285 PCD dual steel rims (aluminium optional)

Tyres

11R22.5

Spare wheel carrier

Dual (spare wheels optional)

Lighting

Full LED

Water tank

30L stainless steel

Toolboxes

1 steel with stainless steel “T” handles

Mudguards

Plastic radius guards with AAA Trailers mudflaps

Curtains

Polyweld load restraint, single base colour

Optional extras

• Road Train Kit
• Ring Feeder
• Custom Paint - Coaming Rails
• Road Train / Long Vehicles Signs
• Hub Odometer
• Spare Wheel: teel or Alloy
• Custom Curtains: To be Quoted

Capacity

ATM: 47T

GTM: 23.5T

Approx tare weight: 10.5T

• Road Train Kit
• Ring Feeder
• Custom Paint - Coaming Rails
• Road Train / Long Vehicles Signs
• Hub Odometer
• Spare Wheel: teel or Alloy
• Custom Curtains: To be Quoted
