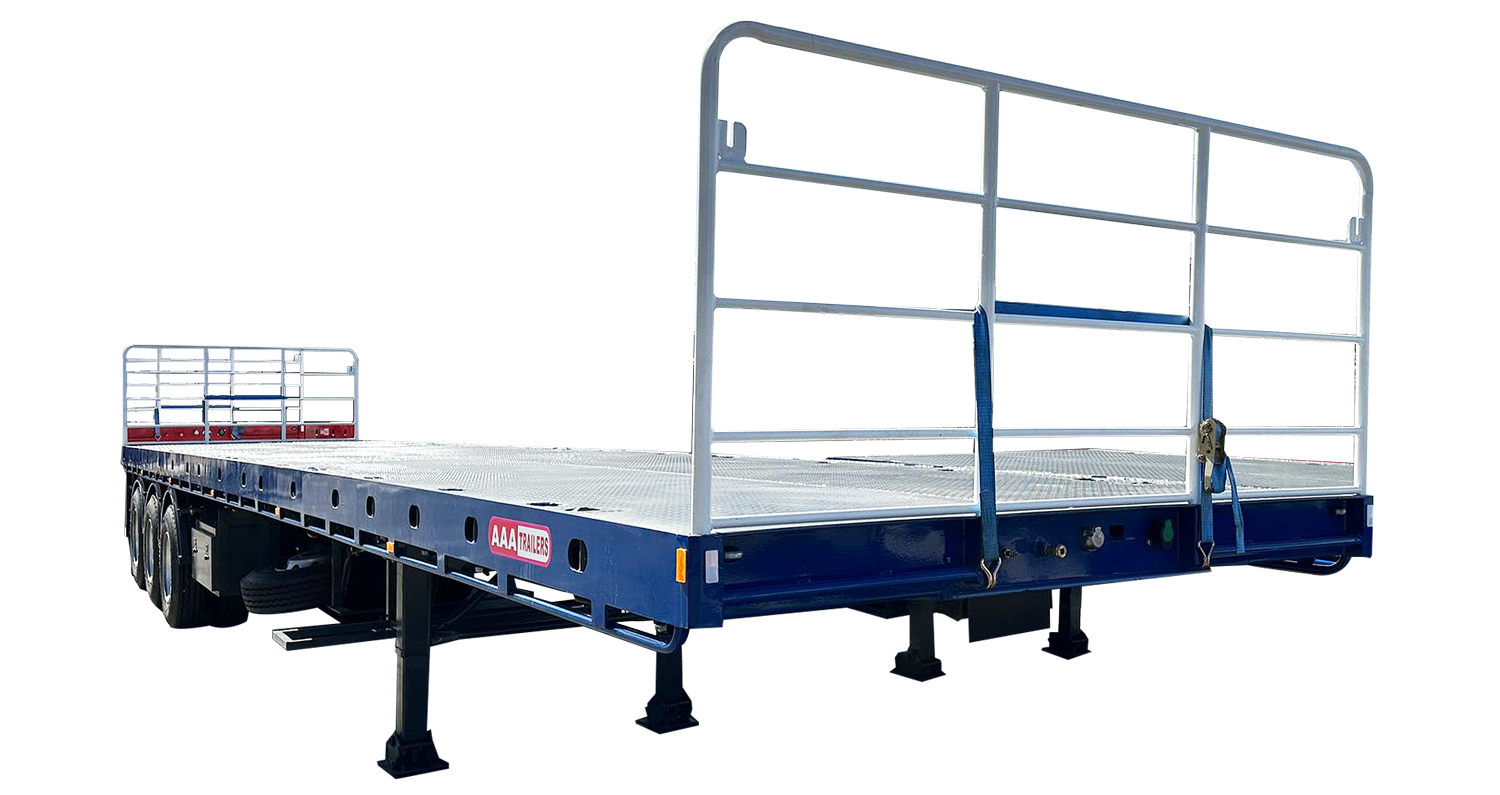

FLAT DECKS

Capacity (ATM)

45-47 Tonnes

Capacity (GTM)

20-23.5 Tonnes

Tare Weight

9.2 Tonnes

More Specs

• 13.72mtr x 2.5mtr
• K-Hitch airbag suspension KT250 with air dump valve
• K-Hitch axles with parallel bearings
• Tyre size 11R 22.5 on 10 studs American rims
• 11x sliding winches for straps
• High tensile 5mm chequer plate flooring (forklift approved)
• Laser cut flat side coaming rail or c channel coaming rail option
• 3-way container pins 1x 40ft or 2x20ft
• 2 position bolt in king pin available as 50mm or 90mm
• 2 x heavy-duty tool boxes with stainless steel "T" handles
• LED lighting
• Side gate pockets
• Front & Rear Headboard gates
• 22 Pallet space deck
• Dual spare tyre holders
• Ringfeder bracket
• K-Hitch 2' speed landing legs

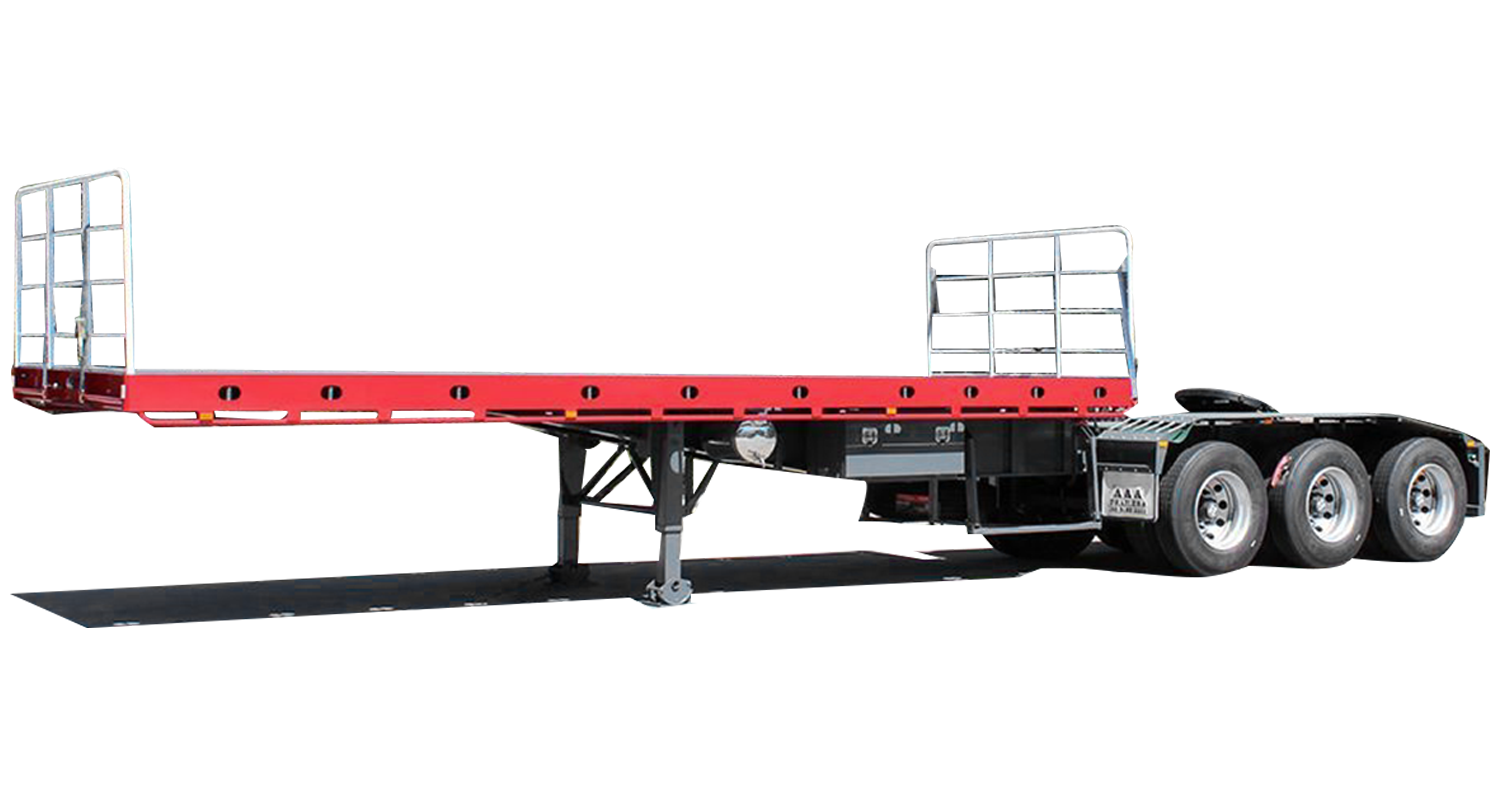

Capacity (ATM)

45 Tonnes (Eastern States), 47 Tonnes (WA)

Capacity (GTM)

20 Tonnes (Eastern States), 23.5 Tonnes (WA)

Tare Weight

7.6 Tonnes

Width

2.5m

More Specs

• 11.44mtr long x 2.5mtr wide
• High tensile steel grade mainframe
• High tensile 5mm steel chequer plate forklift rate floor
• Laser cut flat side coaming rail or c channel coaming rail options
• Container pins for 1x 20FT
• Front & Rear gate
• Side gate pockets - steel gates available
• K-Hitch axle with parallel bearings
• K-Hitch airbag suspension KT250 with 3-way dump valve
• K-Hitch turntable 90mm
• 2 position bolt in king pin - 90mm or 50mm available
• K-Hitch 2- speed landing legs
• American 10-stud steel rims
• Tyre size 11R 22.5
• Dual spare wheel carries
• Full LED lights
• 1 Steel toolbox with stainless steel "T" handles
• 7.36mtr 12 pallet deck

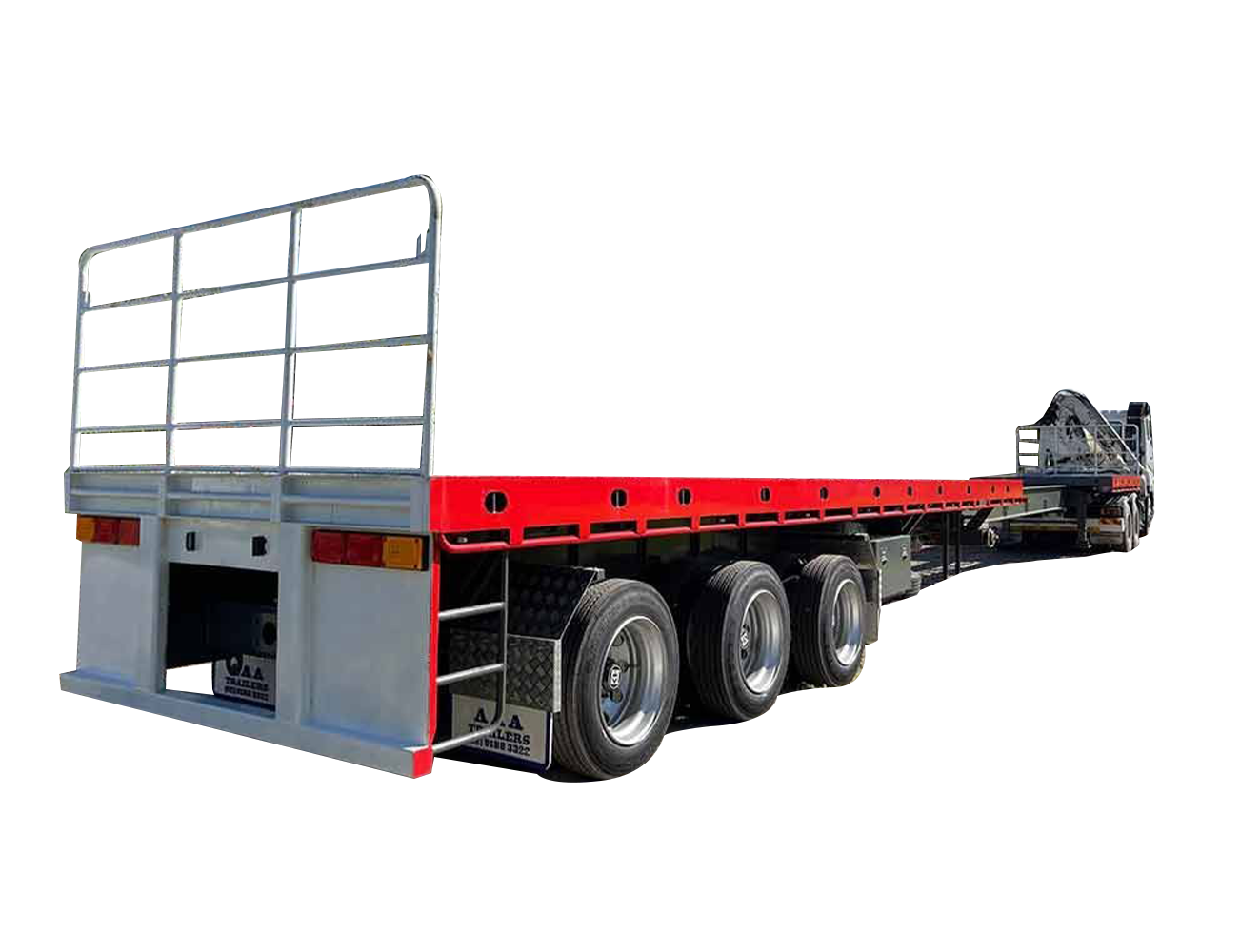

Capacity (ATM)

45-47 Tonne

Capacity (GTM)

20-23.5Tonne

Tare Weight

10.9 Tonne

Length

13.72m

Width

2.5m

Extends

21.4m

More Specs

• High tensile steel mainframe
• 5mm steel chequer plate forklift rate floor
• 5 inch coaming with tie rail

Suspension

FUWA K-Hitch airbag suspension KT250-U, 11T rated K-Hitch axle

Coupling

50mm or 90mm 2 position bolt in K-Hitch king pin

Landing Legs

K-Hitch 2 speed

Tyres

11R22.5 on American 10 Stud Alloy Rims

Spare

1 Spare Tyre Included

Accessories

• Dual spare wheel carries
• Full LED lights
• 2 Steel toolbox with stainless steel "T" handles
• Plastic guards with mudflaps
• Ringfeeder bracket
• 3- way container pins for 1 x 40ft or 2 x 20ft
• Front & Rear Headboard gate
• Side gate pockets
• 22 pallet deck

Optional Extras

• LED Beacon light
• Road train kit plus Ringfeeder
• Reverse alarm
• Custom Painting

More Specs

• 13.73 mtr long x 2.5 mtr wide
• High tensile steel grade mainframe
• 5mm steel chequer plate forklift rate floor
• 5-inch coaming with tie rail
• 3-way container pins
• Front & rear gate
• Side gate pockets
• K-Hitch tri-axle
• K-Hitch suspension
• K-Hitch turntable
• 2 position king pin
• K-Hitch 2-speed landing legs
• American 10 stud steel rims
• Tyre size 11r 22.5
• Dual spare wheel carries
• Full LED lights
• 2 steel toolbox with stainless steel “T” handles
• Plastic guards with mudflaps
• Ringfeeder bracket

More Specs

• 13.73 mtr long x 2.5 mtr wide
• High tensile steel grade mainframe
• 5mm steel chequer plate forklift rate floor
• 5-inch coaming with tie rail
• 3-way container pins
• Front & rear gate
• Side gate pockets
• K-Hitch tri-axle
• K-Hitch suspension
• K-Hitch turntable
• 2 position king pin
• K-Hitch 2-speed landing legs
• American 10 stud steel rims
• Tyre size 11R 22.5
• Dual spare wheel carries
• Full LED Lights
• 1 steel toolbox with stainless steel “T” handles
• Plastic guards with mudflaps
• 8.0 tonnes tare weight
