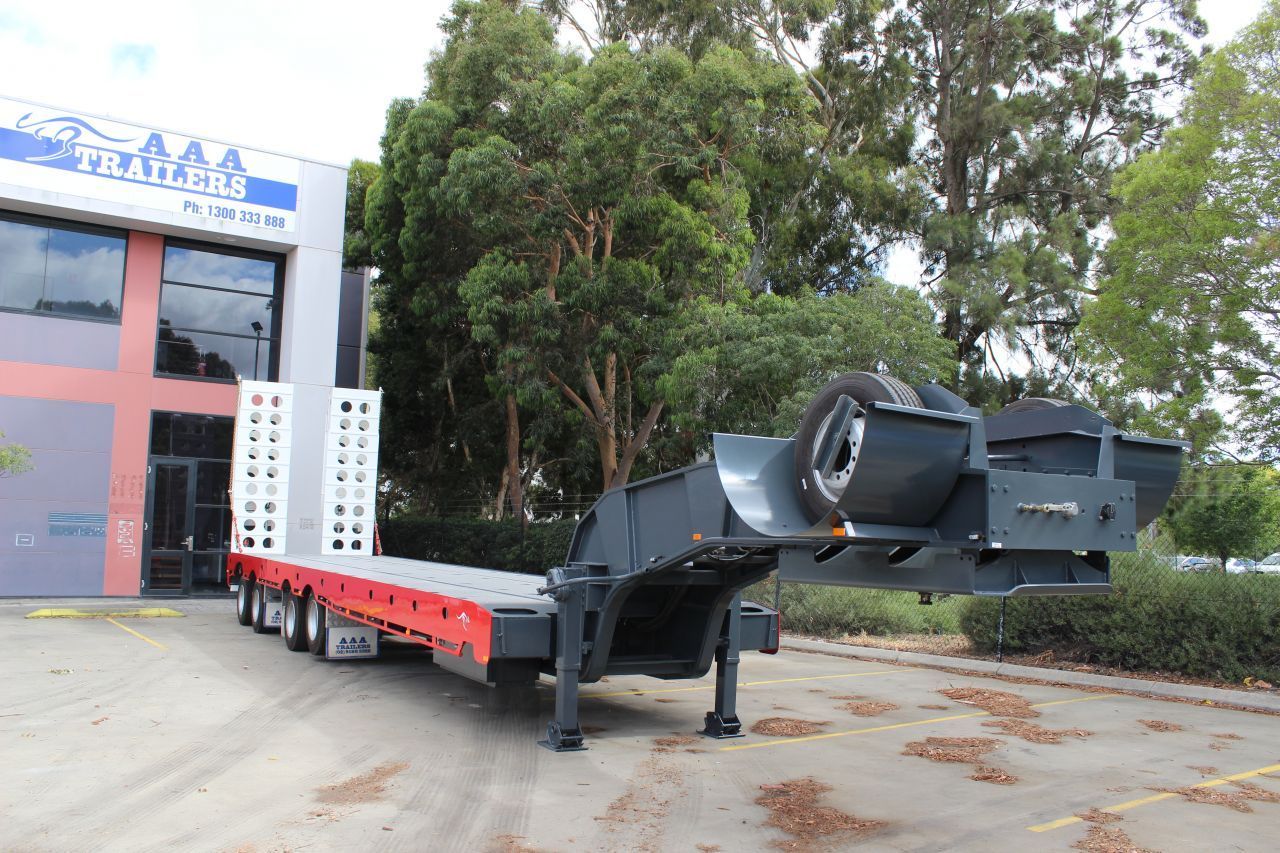

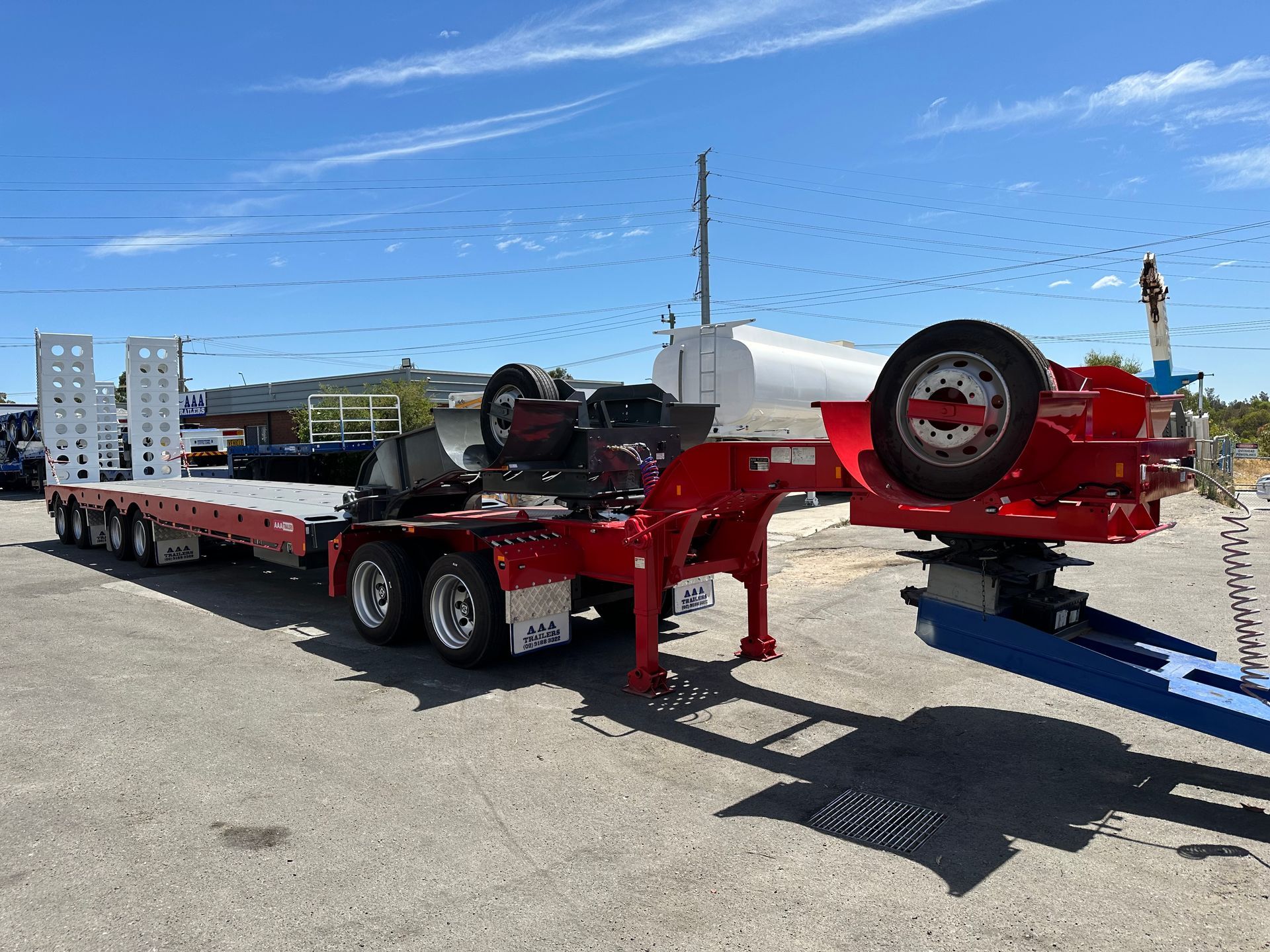

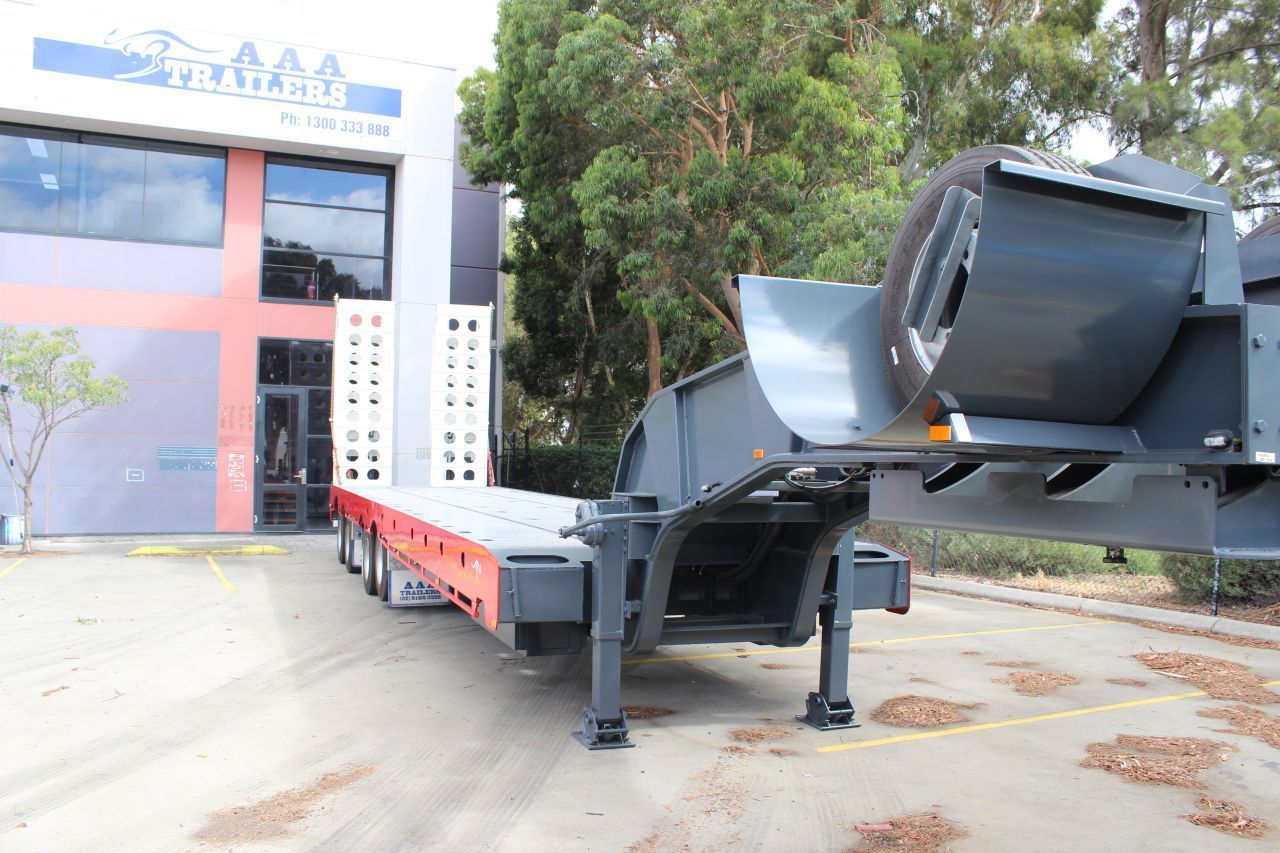

Low Loader Trailers

Length Usable Deck length

11,200 mm

Width Closed

2500mm

Fully Widened

3500mm

Height Deck Height

900mm on 17.5-inch rims

Capacity

(ATM) 60 tonnes (GTM) 25 tonnes (upgrades available in Western Australia)

Tare Weight

15.4 tonnes complete with ramps and spare wheel

Upper Side

• Bi-fold ramps. 900mm wide and fully extended 4700mm
• Side coaming 8mm thick cold-rolled sheet steel. Tensile strength = 650mPa
• Flooring 8mm cold-rolled flat sheet steel – high tensile 650mPa.
• Under-floor construction consists of heavy-duty I-beam cross-members, with industrial C-100 channel under-floor runners for extra support.
• Skid-plate 16mm thick oscillating skid-plate, with two position bolt-in king pin boss-plates fitted as standard

Hydraulic System

• 4x 50mm x deck widening cylinders
• 1x 10hp diesel engine power pack as standard for airbag Electric power pack for spring suspension is standard
• Unit features Italian-made spool valves as standard

Under Side

• Chassis beams I-beam construction: 25mm thick flange plates (350mPa),
• 10mm webbing plate (450mPa) – half the chassis webbing is double plated for strength and durability ready for those rough roads.
• Landing gear K-Hitch 2 speed legs
• King pin K-Hitch 2 position bolt in 50mm or 90mm available

Axles and Suspension

• High-quality SAF axles imported from Europe
• Lift up front axle air-operated
• Steering axle on the rear
• Full Wabco EBS control system
• 3-way air dump valve for ease of loading
