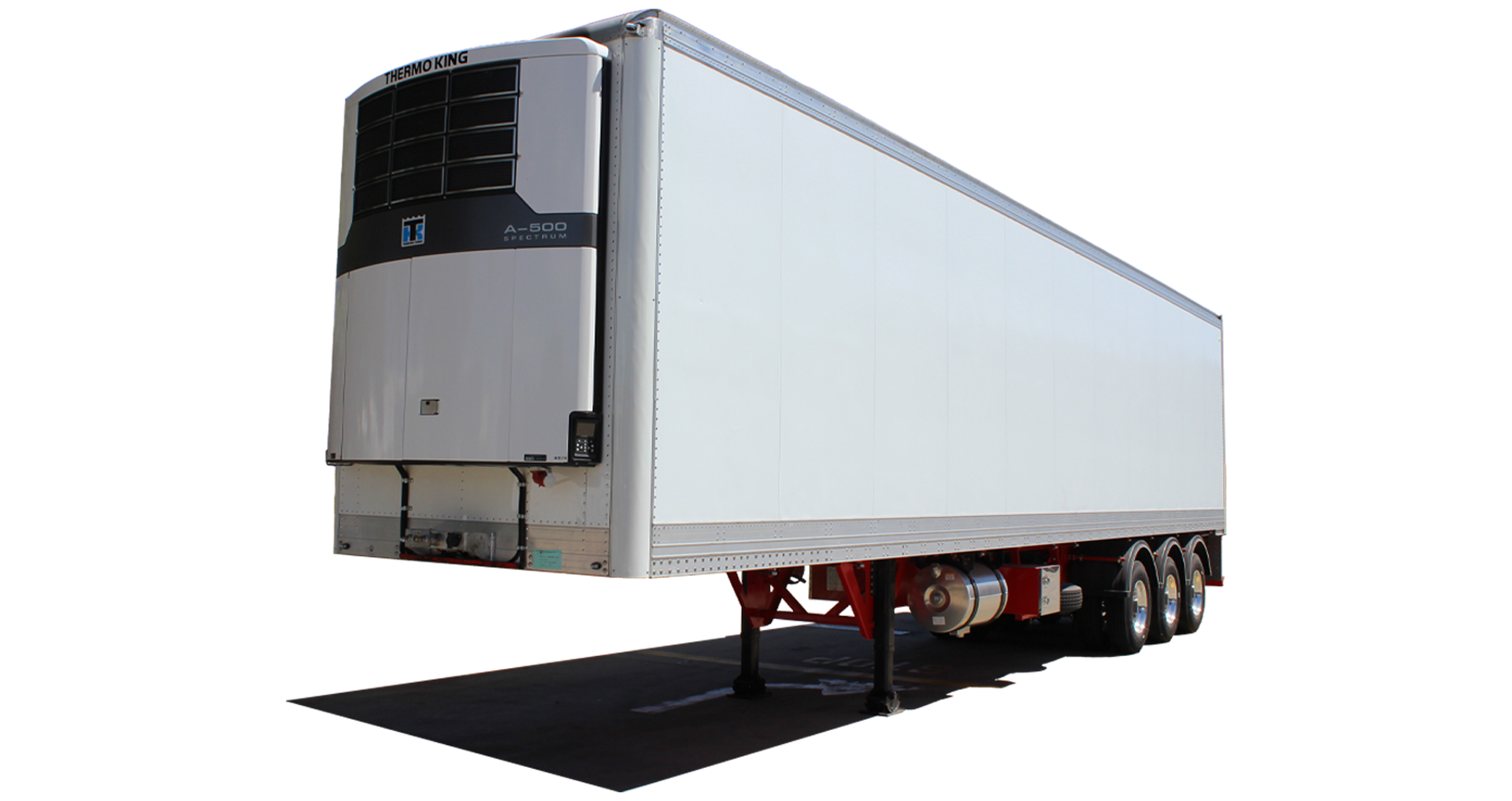

AAA TRAILERS – FLAT TOP REFRIGERATED TRAILER - 22 PALLET

Specfications Details

Capacity

ATM: 47T

GTM: 23.5T

Approx tare weight: 9.3T

Length

13.72m

Refrigerated Unit

Thermo King Unit of Choice

Single Zone/Dual Zone

Mainframe

High-tensile steel grade

Floor

HD Extruded Duct Aluminium Floor

Walls

Aluminium Panel with Polyurethane Insulation

Side Wall Insulation 45mm

Roof, Floor, Front Wall Insulation 100mm

Rear Door Insulation 76mm

Loading Bars

Loading Bars for Double Stacking pallets

Kingpin

Dual-position 50mm bolt-in (90mm optional)

Brake kit

EBS multi-volt 12/24V

Axles

K-Hitch 22.5” drum brake axles

Suspension

K-Hitch tri-axle airbag

Landing legs

K-Hitch 2-speed

Wheels

10/285 PCD dual steel rims (aluminium optional)

Tyres

11R22.5

Spare wheel carrier

Dual (spare wheels optional)

Lighting

Full LED

Water tank

30L stainless steel

Toolboxes

Steel with stainless steel “T” handles for storing Loading Bars

Mudguards

Plastic radius guards with AAA Trailers mudflaps, quarter guards front and rear

Optional extras

Road train bracket, coupling, air, and electrical
