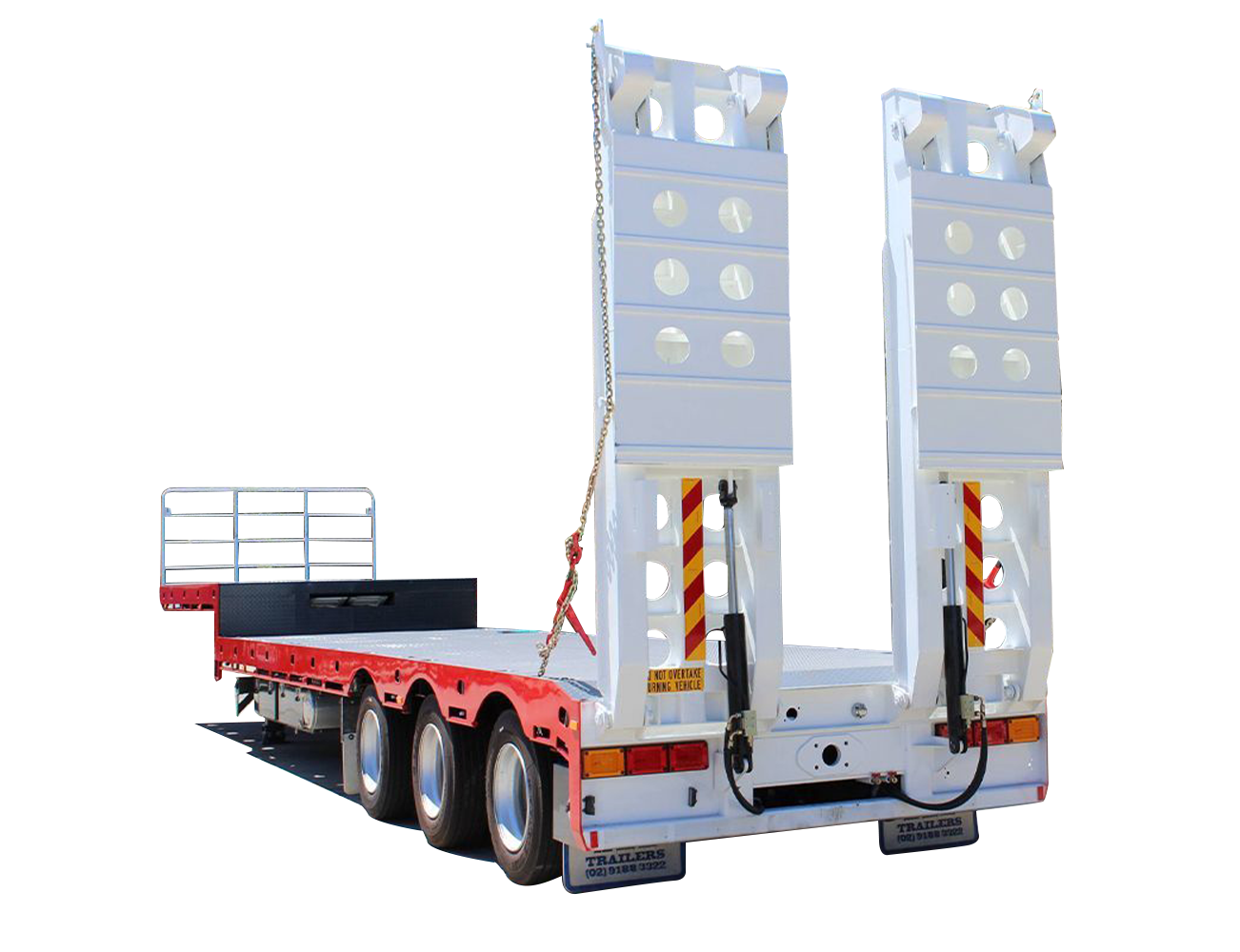

AAA TRAILERS 45' DROP DECK WITH BI-FOLD RAMPS
+14
+13
+12
+11
+10
+9
+8
+7
+6
+5
+4
+3
+2

AAA TRAILERS 45' DROP DECK WITH BI-FOLD RAMPS

Store / Drop Deck Trailers
AU$68 000.00
Ramps
Please choose
Suspension (For Bi-fold Ramps)
Please choose
Rims
Please choose
Optional Extras
In stock
Product Details

The 45' Drop Deck with Bi-fold Ramps Trailer offers a smooth and reliable haul. Choose between airbag suspension or spring suspension and 22.5' or 19.5' rims. Capable of handling an ATM of 45-47 tonnes and a GTM of 20-27 tonnes. This trailer provides a payload of up to 28 tonnes. Ideal for heavy-duty transportation needs across Australia.


AAA Trailers is proudly Australian owned and operated.


Additional info:

  • This unit comes with a 12-month warranty.
  • Pre- and post-sales service available.
  • We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
  • Additional charges will apply if you require trailer registration and transportation.
  • Rego and on-road cost not included.

Specifications Details
Capacity ATM: 47T
GTM: 27T
Approx tare weight: 10.7T
Length Full length: 13.72m (including ramps)
Lower deck: 9.4m
Upper deck: 3.95m
Mainframe High-tensile steel grade
Floor 5mm steel chequer plate, forklift-rated
Kingpin Dual-position 50mm bolt-in (90mm optional)
Coaming 5-inch with tie rail or C Channel with Tie Rail
Brake kit EBS multi-volt 12/24V
Container pins 3-way
Gates Front gate: 1,200mm steel
Side gates: Side gate pockets (side gates optional)
Axles K-Hitch 22.5” or 19.5” drum brake axles
Suspension K-Hitch tri-axle airbag (FUWA FW520 8-leaf spring optional)
Landing legs K-Hitch 2-speed
Wheels 10/285 or 8/275 PCD dual steel rims (aluminium optional)
Tyres 255/70R22.5 or 265/70R19.5
Spare wheel carrier Dual (spare wheels optional)
Lighting Full LED
Water tank 30L stainless steel
Toolboxes 2 steel with stainless steel “T” handles
Mudguards Quarter guards front and rear with AAA Trailers mud flaps
Road train bracket Coupling, air, and electrical optional
Ramps
  • Bi-fold with 12V electric power pack and N150 battery with built-in Anderson plug
  • 3 pc fold-down upper deck ramps
  • Slide-out upper deck ramps (optional)
  • Forward Fold Ramps (optional)
Optional Extras
  • Road Train Kit
  • Ring Feeder
  • Side Gates
  • Custom Paint - Coaming Rails
  • Forward Fold Ramp Option
  • No Ramps
  • Hard Wired Flashing Beacon
  • Road Train / Long Vehicles Signs
  • Hub Odometer
  • Spare Wheel: Steel or Alloy
  • 3 Piece Flip-Over Upper Deck Ramps

Returns and Warranty Policy

Show More
Save this product for later
Share this product with your friends
Pin it
AAA TRAILERS 45' DROP DECK WITH BI-FOLD RAMPS
Store / Drop Deck Trailers
You May Also Like
AAA TRAILERS 45' DROP DECK TRI-AXLE DECK WIDENER WITH BI-FOLD RAMPS
AAA TRAILERS 45' DROP DECK TRI-AXLE DECK WIDENER WITH BI-FOLD RAMPS
AAA TRAILERS 45' DROP DECK TRI-AXLE DECK WIDENER WITH BI-FOLD RAMPS
AU$85 000.00

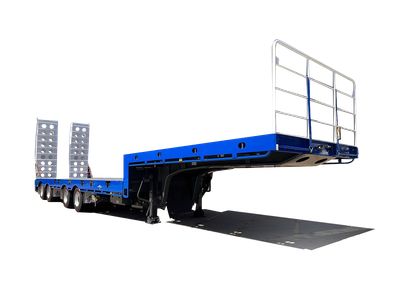

AAA TRAILERS 45' DROP DECK QUAD-AXLE DECK WIDENER WITH FRONT LIFT UP, REAR STEER AXLE AND BI-FOLD RAMPS
AAA TRAILERS 45' DROP DECK QUAD-AXLE DECK WIDENER WITH FRONT LIFT UP, REAR STEER AXLE AND BI-FOLD RAMPS
AAA TRAILERS 45' DROP DECK QUAD-AXLE DECK WIDENER WITH FRONT LIFT UP, REAR STEER AXLE AND BI-FOLD RAMPS
AU$155 000.00
AAA TRAILERS 45' DROP DECK EXTENDABLE WITH BI-FOLD RAMPS
AAA TRAILERS 45' DROP DECK EXTENDABLE WITH BI-FOLD RAMPS
AAA TRAILERS 45' DROP DECK EXTENDABLE WITH BI-FOLD RAMPS
AU$80 000.00
AAA TRAILERS CURTAINSIDER DROP DECK B-TRAILER 22 PALLET
AAA TRAILERS CURTAINSIDER DROP DECK B-TRAILER 22 PALLET
AAA TRAILERS CURTAINSIDER DROP DECK B-TRAILER 22 PALLET
AU$115 000.00

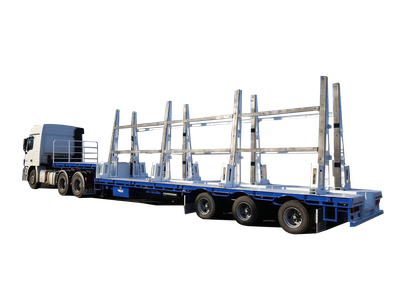

AAA TRAILERS 45' DROP DECK CONCRETE PANEL TRAILER
